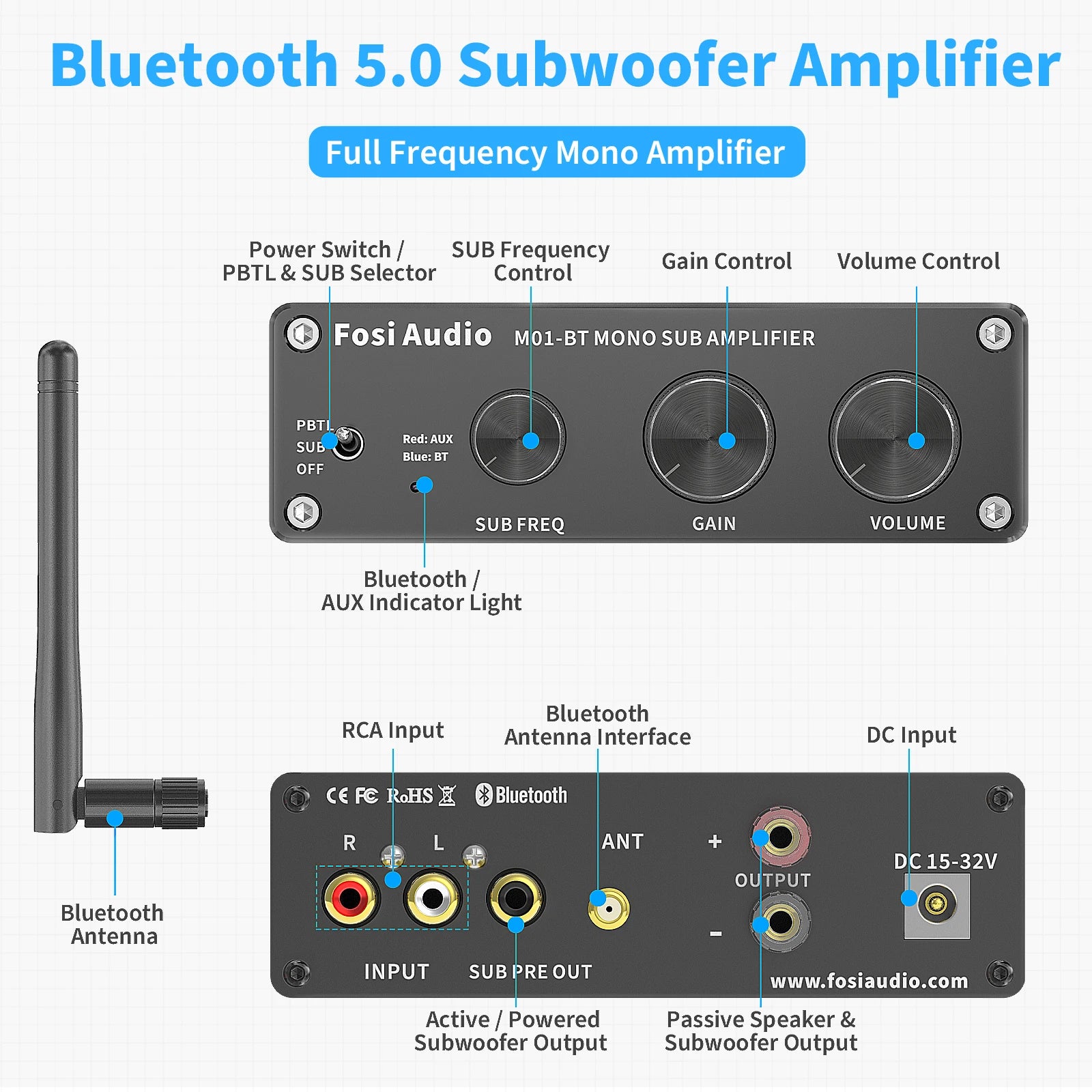

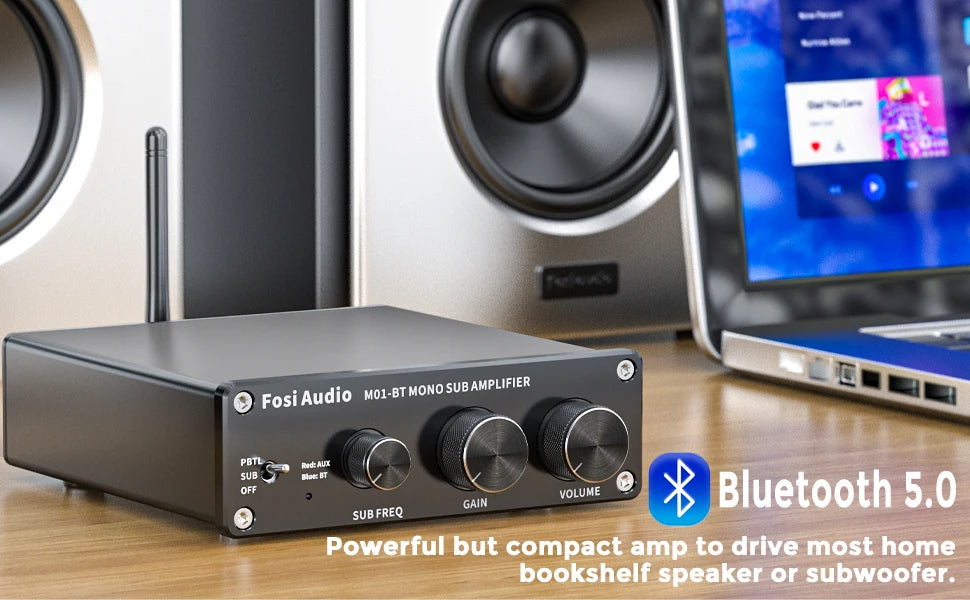

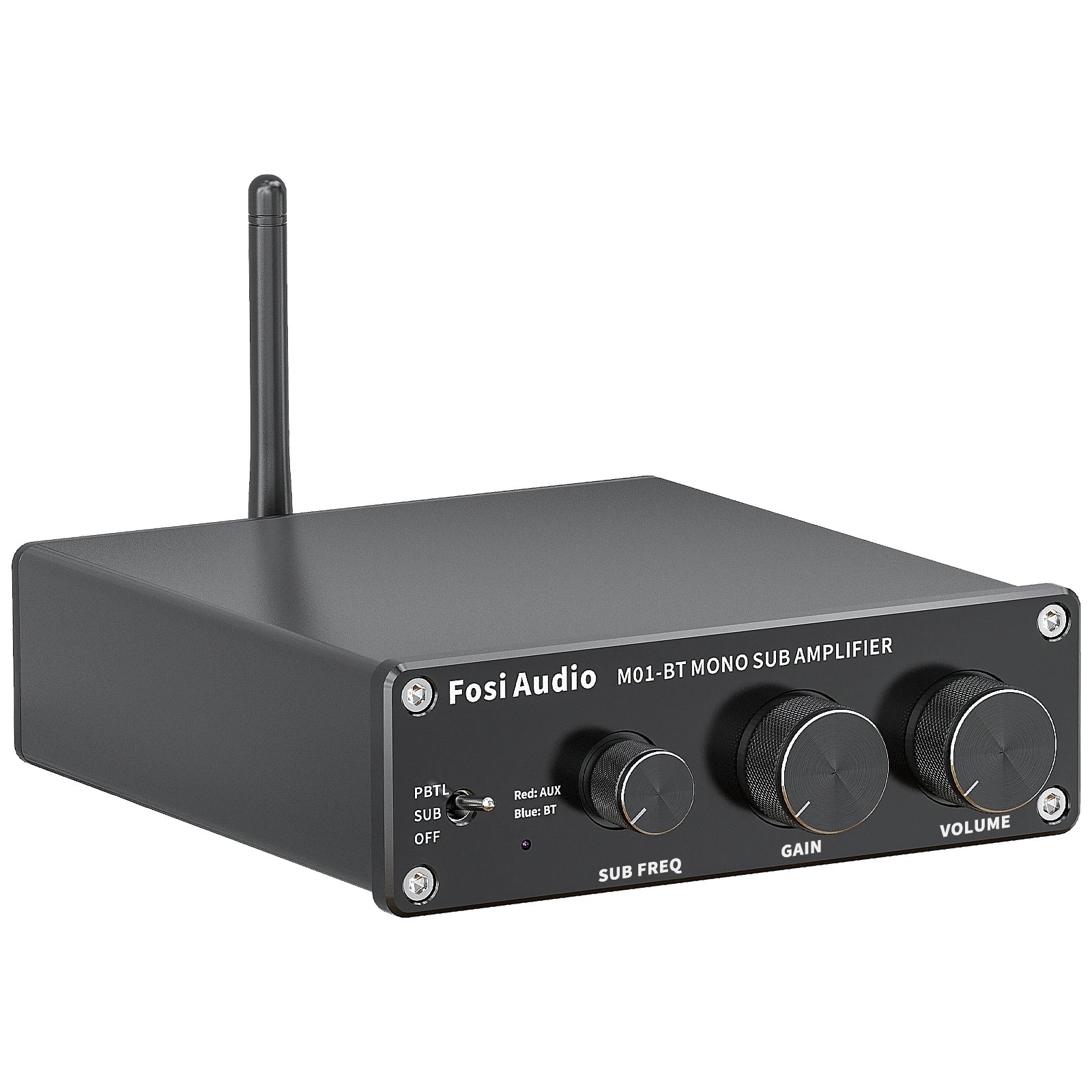

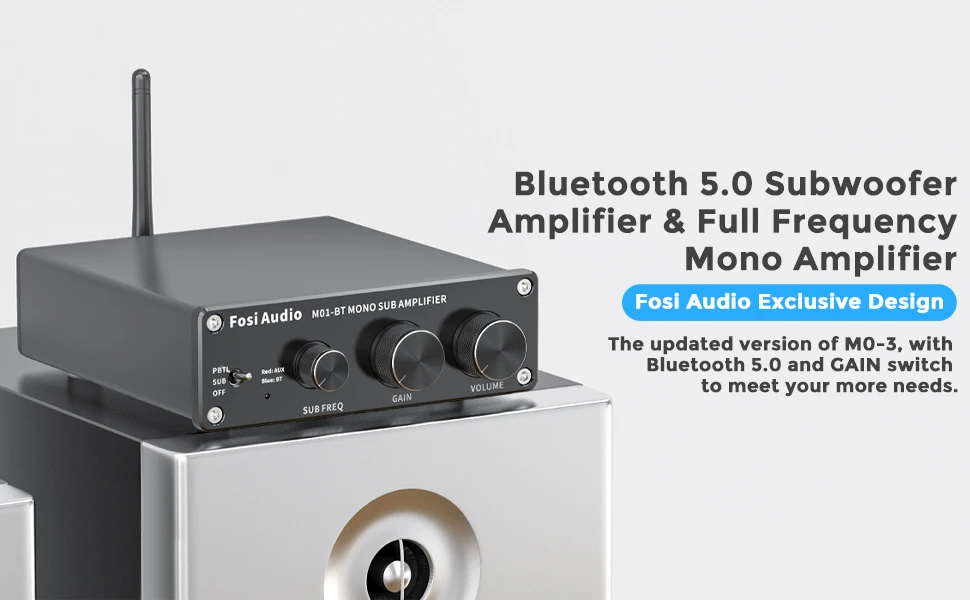

• Upgraded Design: Add Bluetooth to a subwoofer amplifier. M01-BT support Bluetooth and RCA input can drive most home passive speakers, passive subwoofers, and powered subwoofers. (Note： M01-BT is not suitable for active speakers). Easy to build a simple sound system with M01-BT.

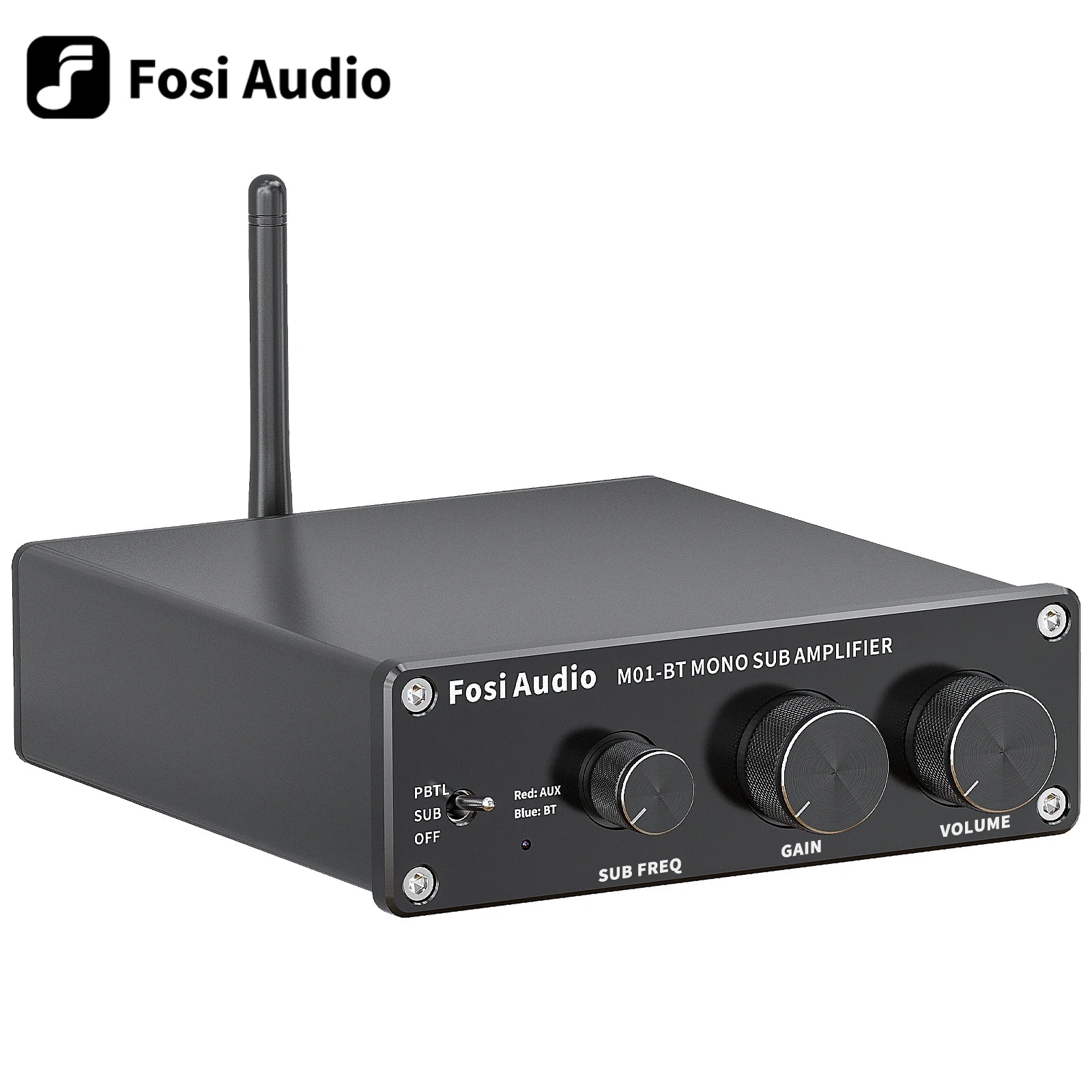

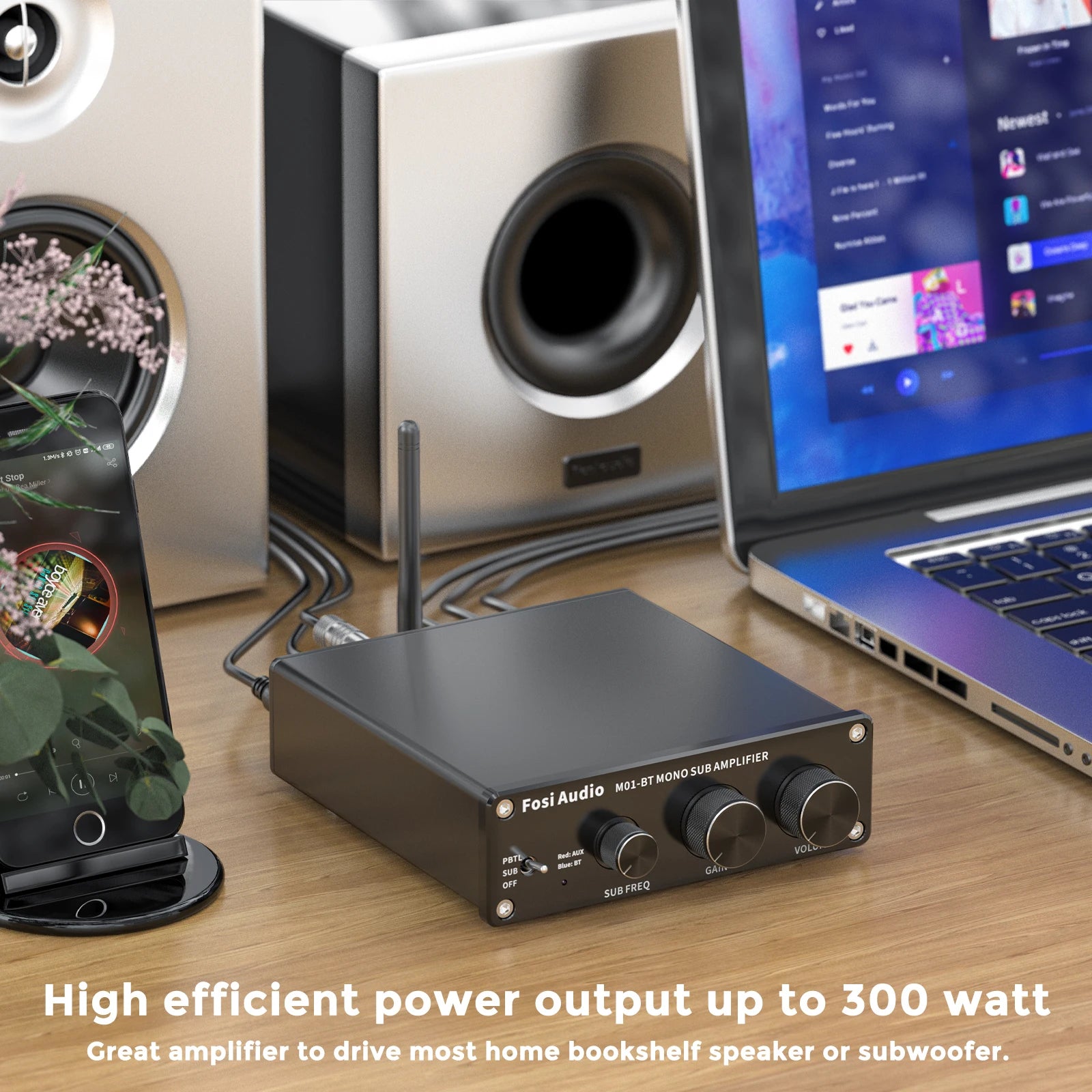

• Mini compact Class D Audio Amplifier. M01-BT SUB amp adopts ST Microelectronics TDA7498E high-performance chip, MAX power output up to 300Watts.

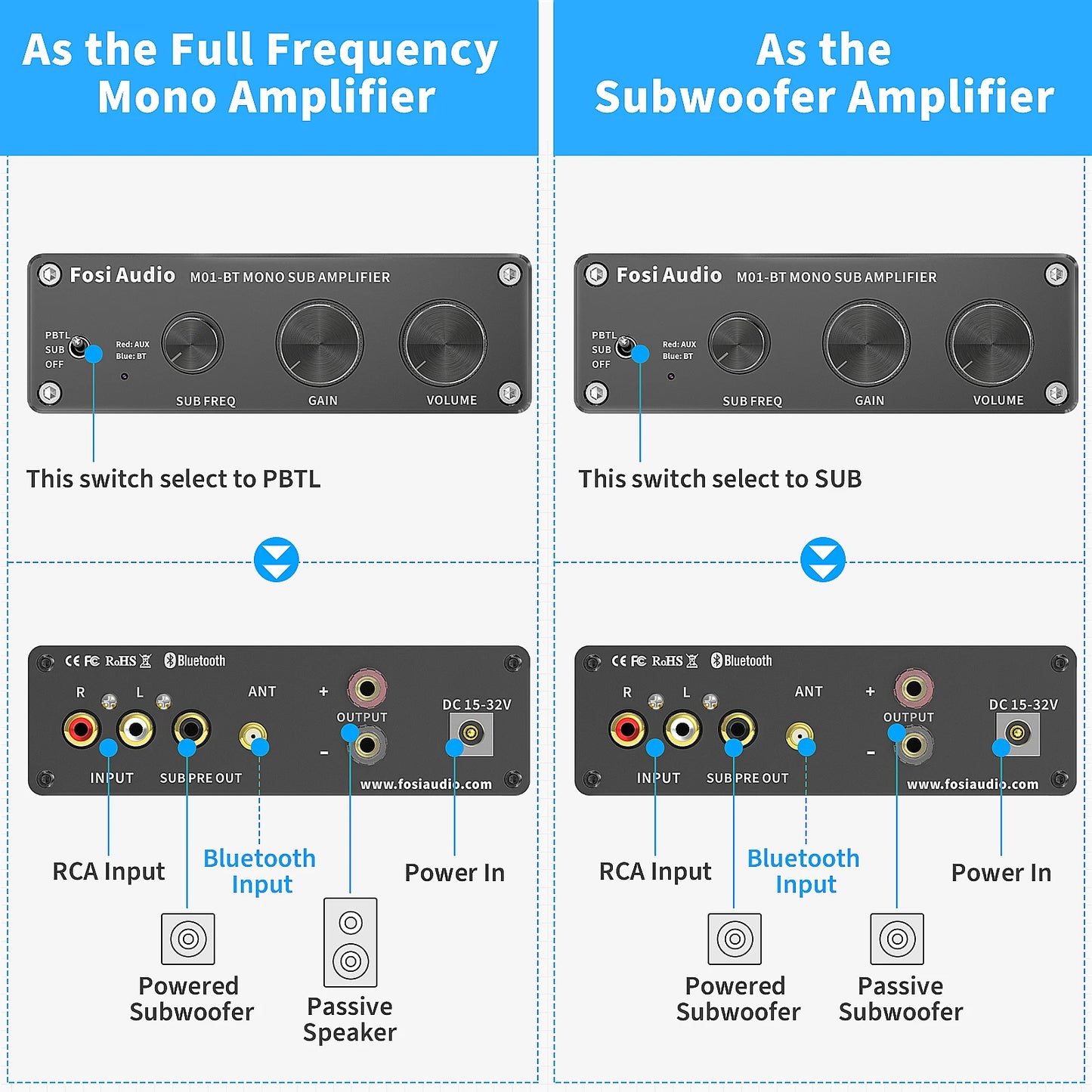

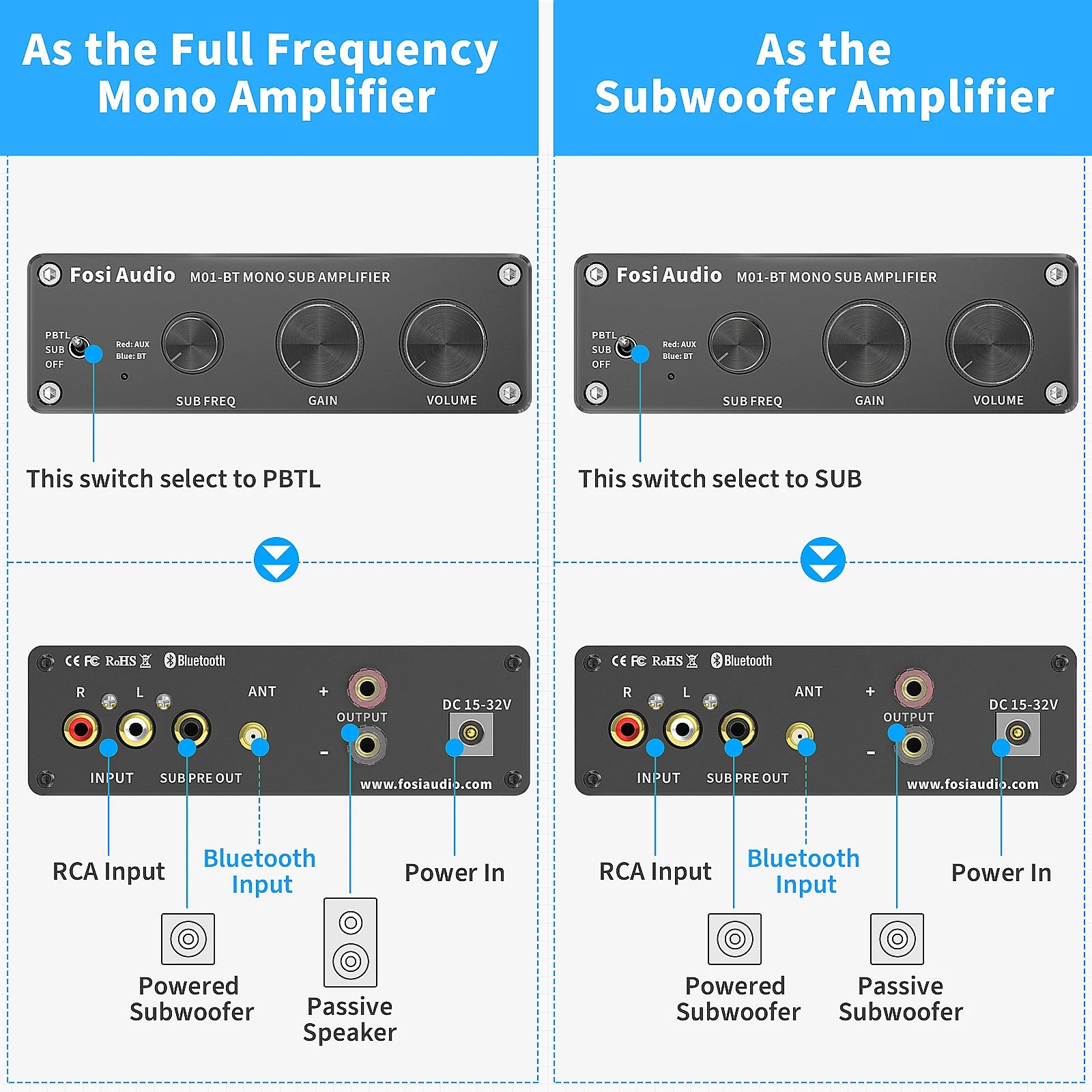

• Switch to PBTL(As a full frequency mono amp): You can use the banana plugs or bare wires to connect the passive subwoofer to the M01-BT, use the RCA cable to connect the powered subwoofer to the M01-BT.
• Switch to SUB(As a subwoofer amp): You can use the banana plugs or bare wires to connect the passive subwoofer to the M01-BT, use the RCA cable to connect the powered subwoofer to the M01-BT.

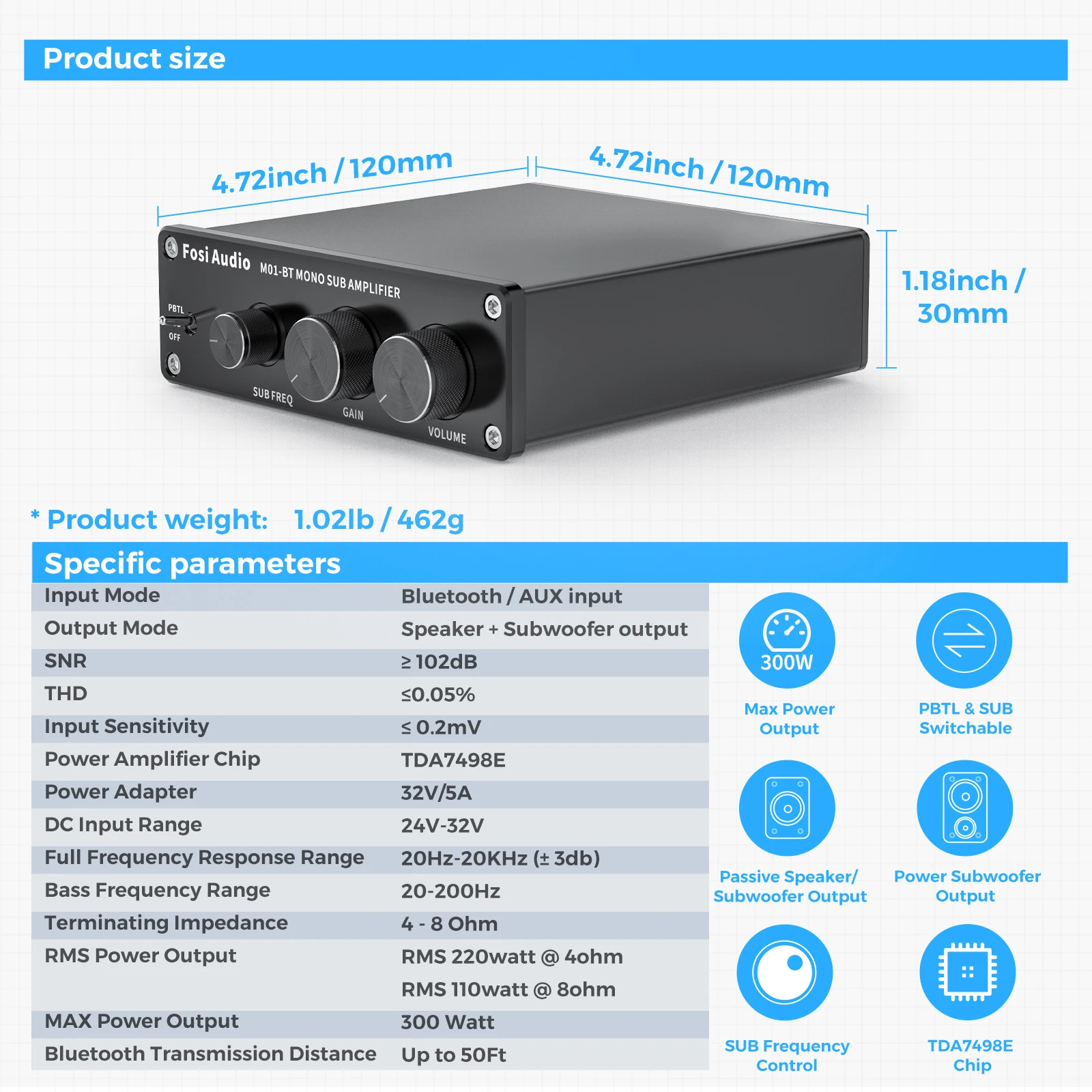

Specifications:

Specifications	Details
Model	M01-BT
MAX Power Output	300W
RMS Power Output	RMS220W@4Ω, RMS 110W@8Ω
Terminating Impedance	2-8Ω
Input Mode	Bluetooth + AUX
Output Mode	Passive Speaker + Powered Subwoofer
Frequency Range	20Hz - 20kHz (±3 dB)
Bass Frequency Range	20-200Hz
THD	≤0.005%
SNR	≥ 102dB
Input Sensitivity	≤ 0.2mV
Chip Set	TPA7498E
DC Input Range	24-32V

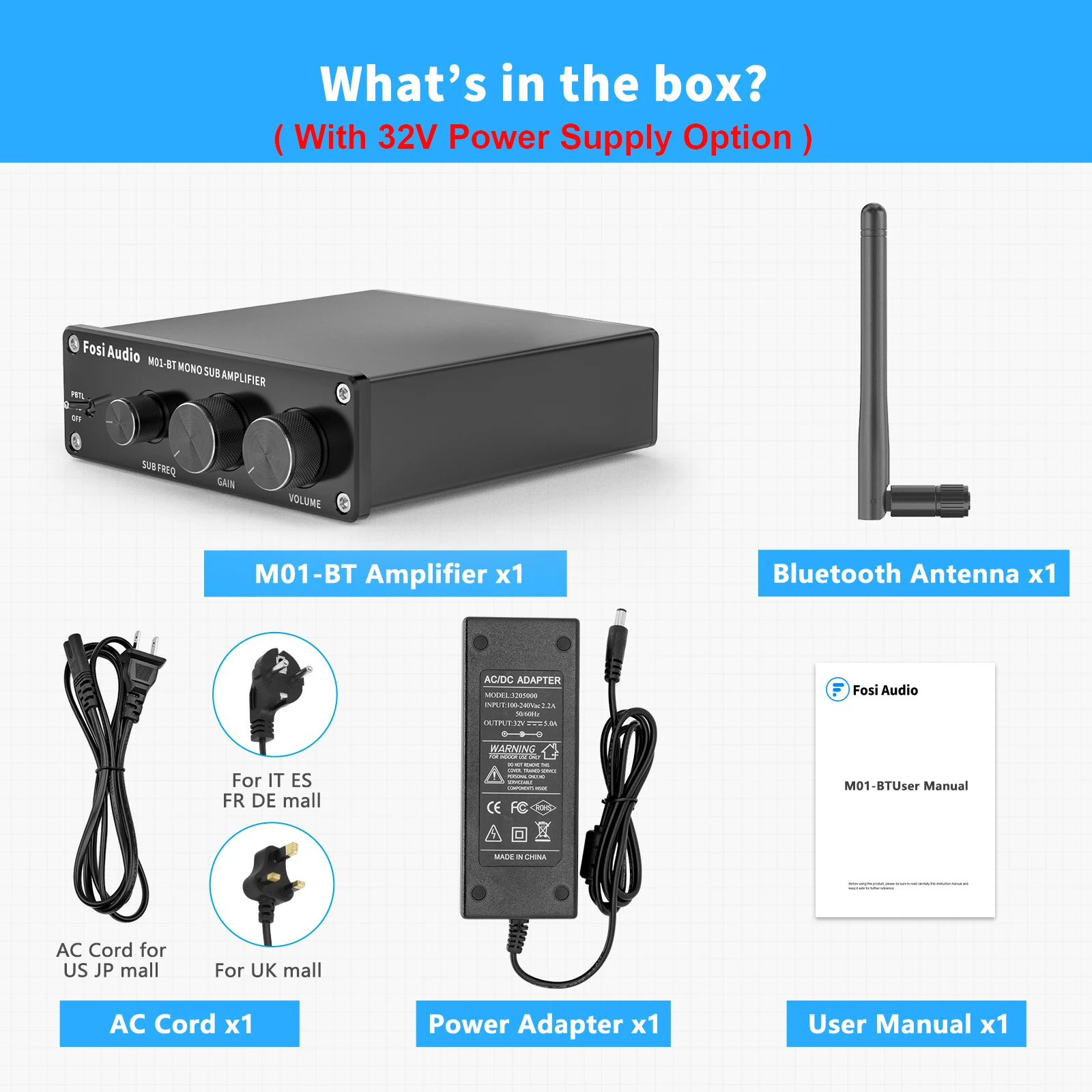

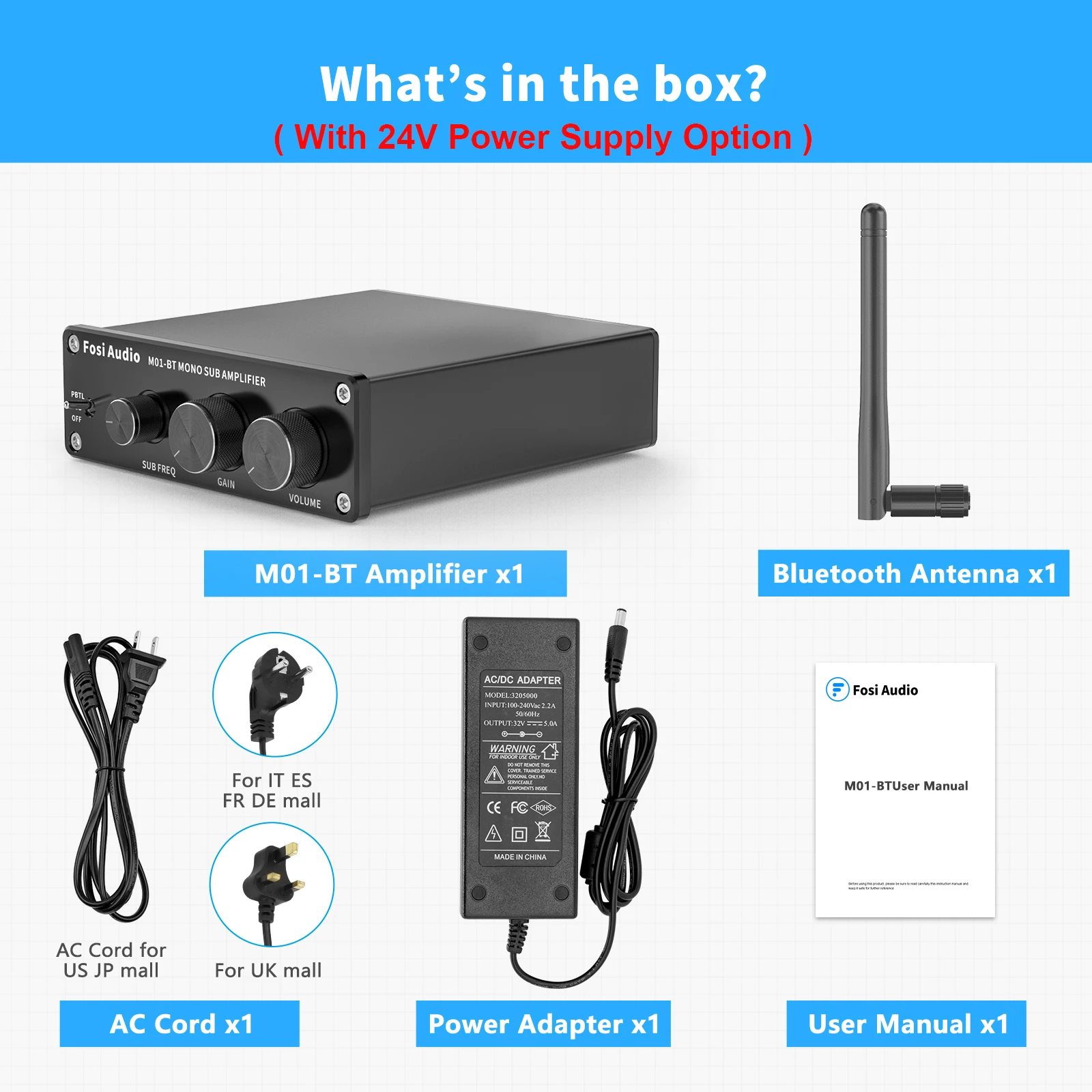

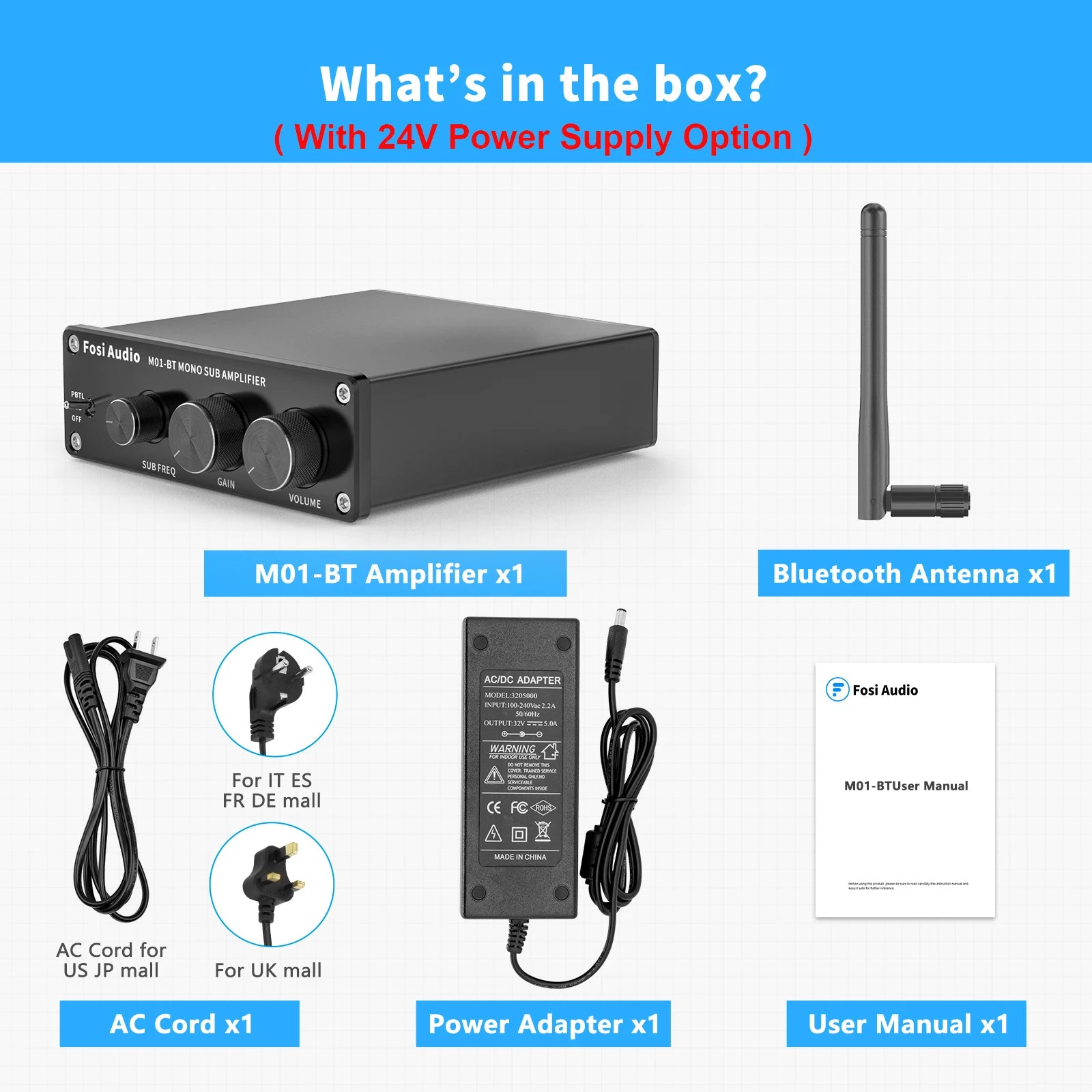

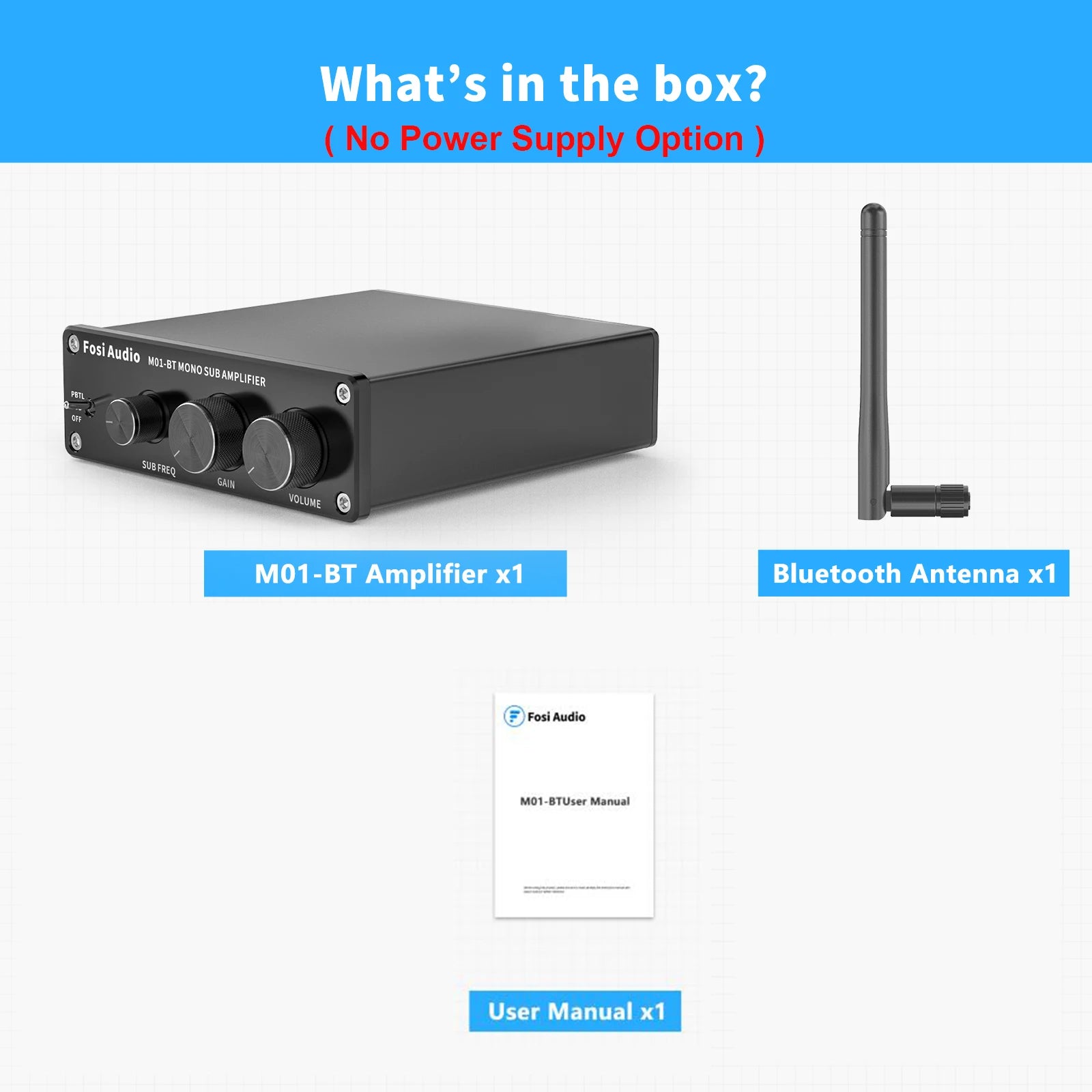

Package Include:

*M01-BT Amplifier x1

*Bluetooth Antenna x1

*User’s Manual x1

*24V 5A Power Adapter x1 (Only for With 24V Power Supply Option) / 32V 5A Power Adapter x1 (Only for With 32V Power Supply Option)
