Summary

The Vapor-D features a DC structure that evolves from the Wide X version.
It delivers exceptional flight performance with the TAKER H60_BLS 60A 4-in-1 ESC and GEP-F722-HD V2 flight controller. Its unique DC design ensures the camera does not capture the propellers in view, boosting both video quality and flight enjoyment. With sleek CNC aluminum alloy side panels, the Vapor-D offers a perfect blend of style and strength.
Available in both 5-inch and 6-inch models, it's made for every pilot and every flying need

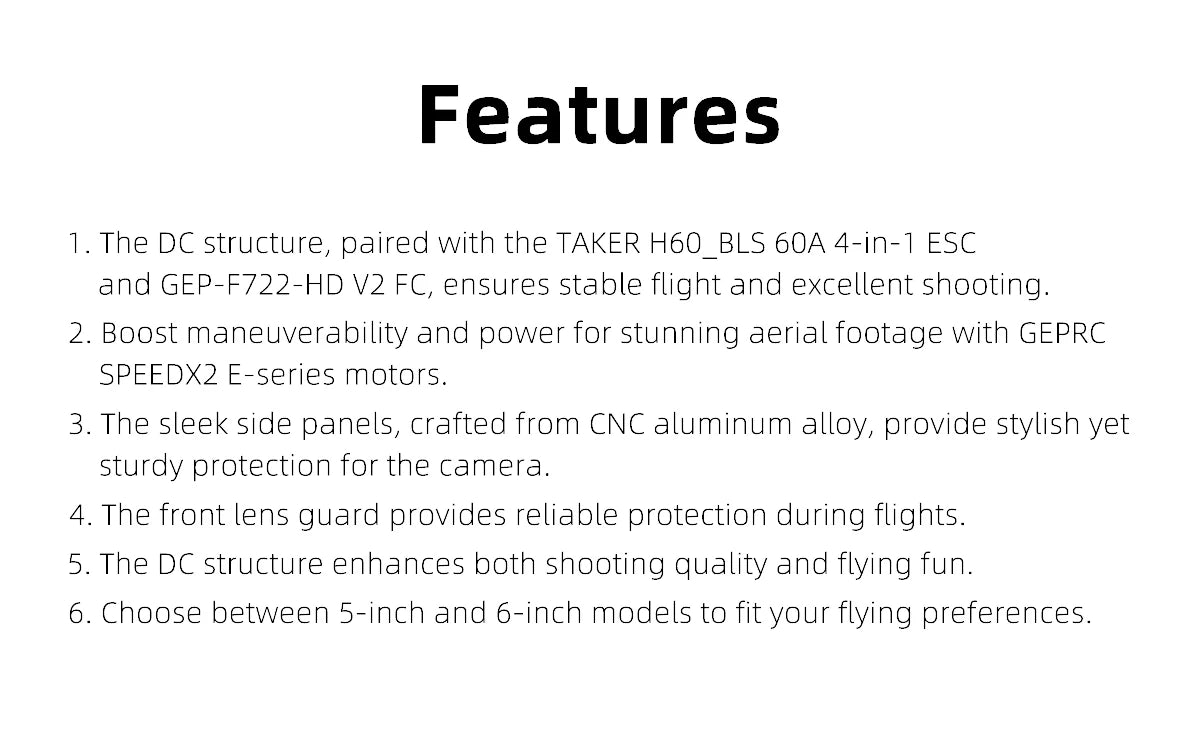

Feature

1.

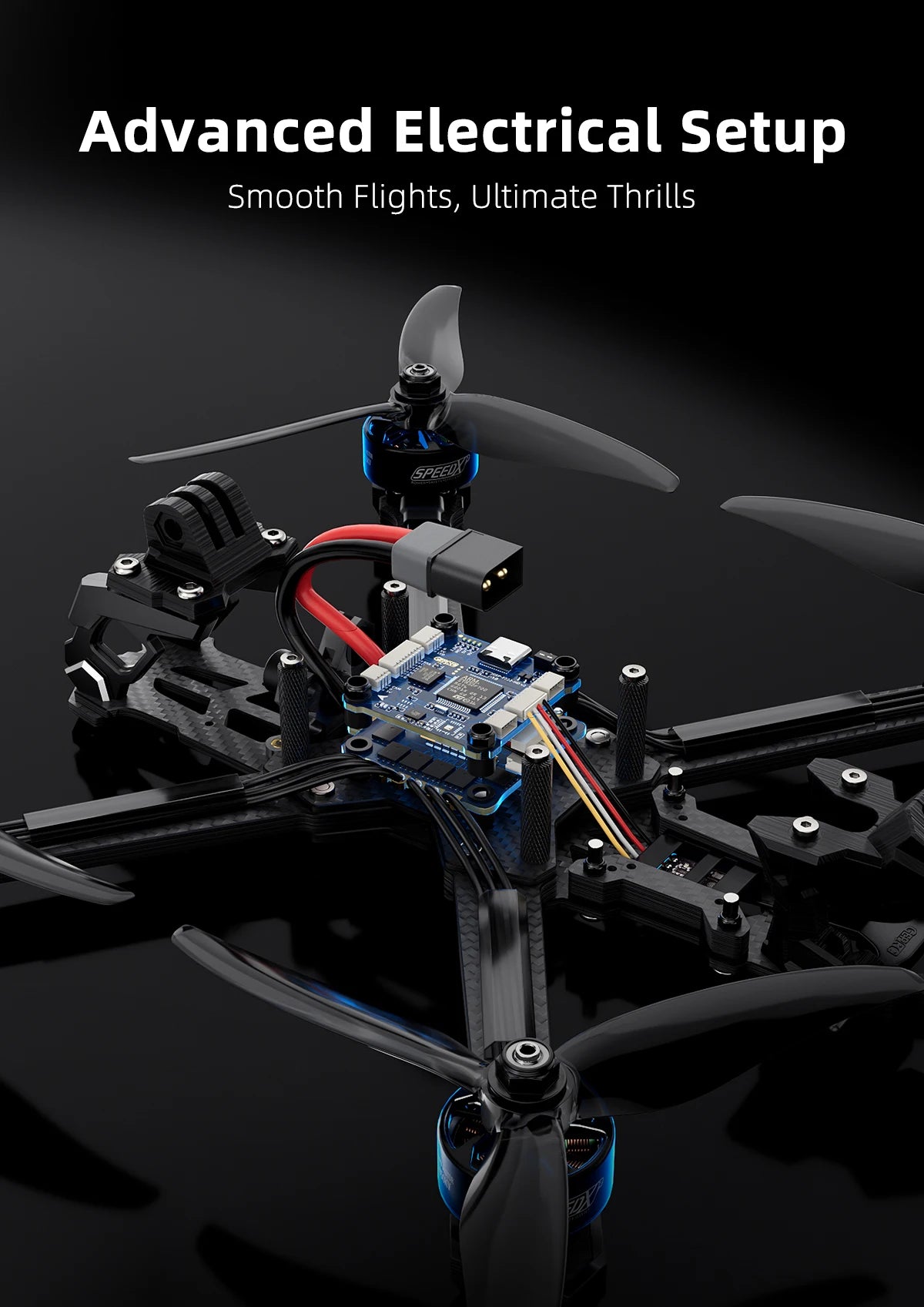

2. The DC structure, paired with the TAKER H60_BLS 60A 4-in-1 ESC and GEP-F722-HD V2 FC, ensures stable flight and excellent shooting.

3.


4. Boost maneuverability and power for stunning aerial footage with GEPRC SPEEDX2 E-series motors.

5.

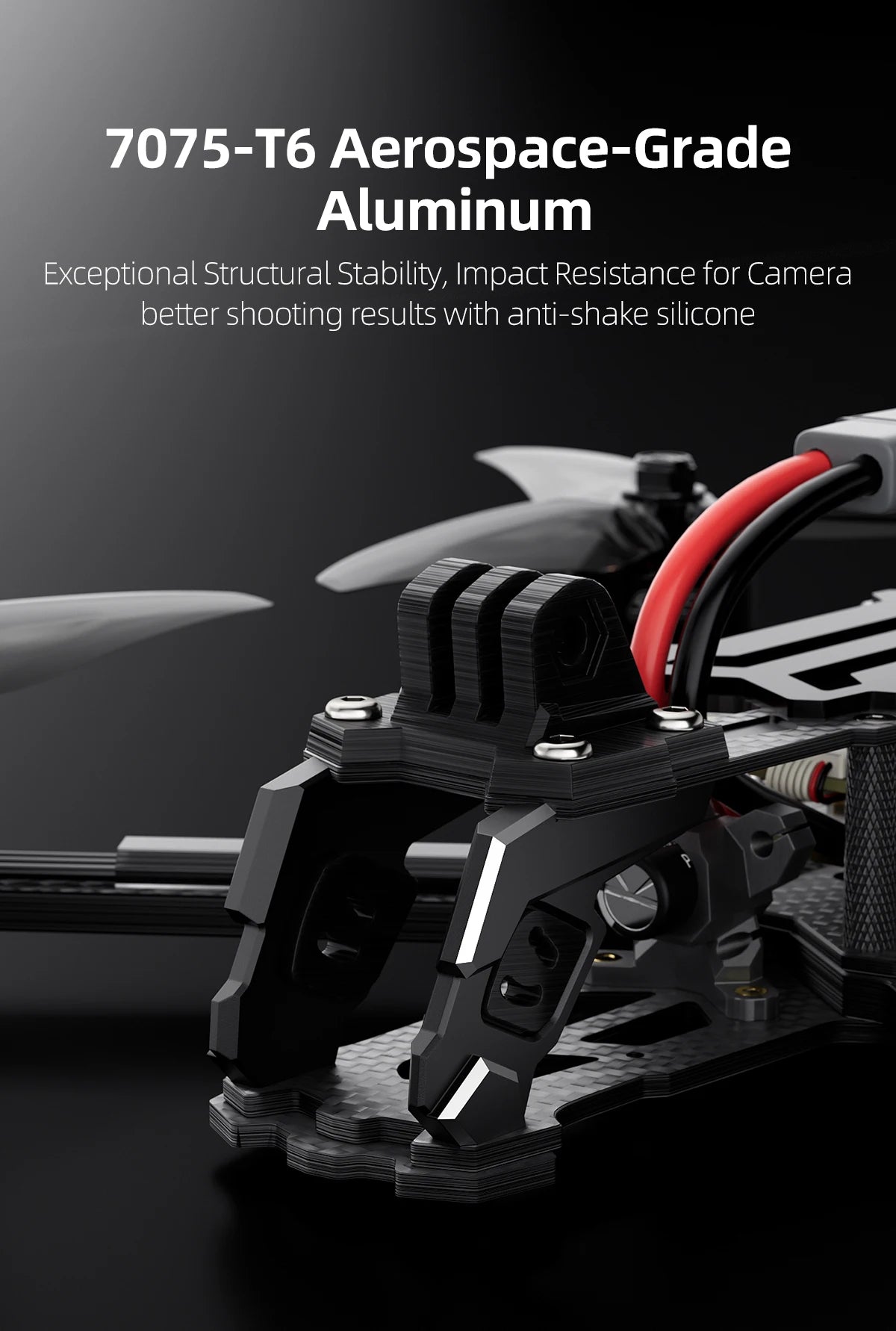

6. The sleek side panels, crafted from CNC aluminum alloy, provide stylish yet sturdy protection for the camera.

7.


8. The front lens guard provides reliable protection during flights.

9.


10. The DC structure enhances both shooting quality and flying fun.

11.


12. Choose between 5-inch and 6-inch models to fit your flying preferences.

13.



Specfication---Vapor-D5 WTFPV

•

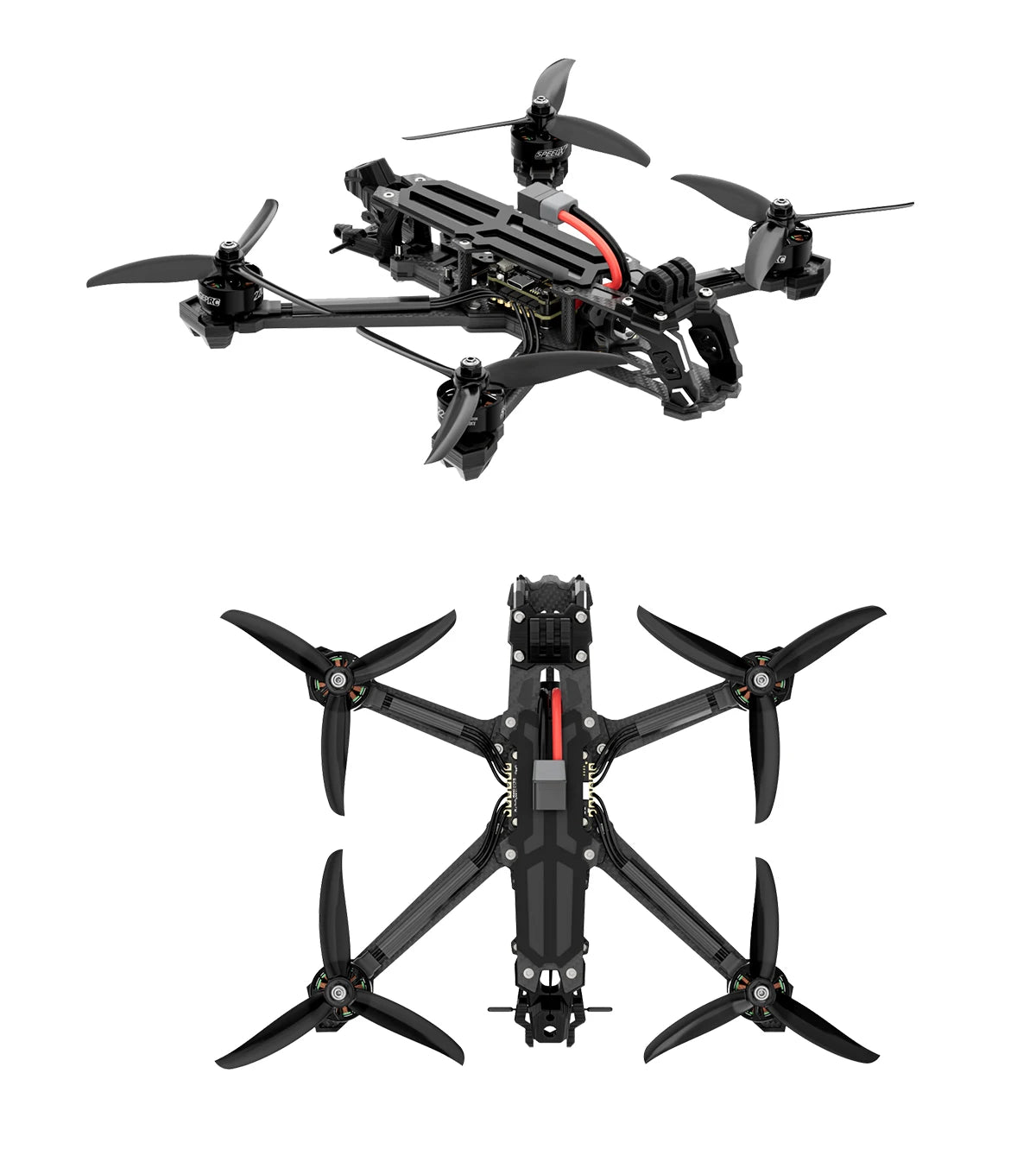

• Model: Vapor-D5 WTFPV Quadcopter

•


• Frame: GEP-Vapor-D5 frame

•

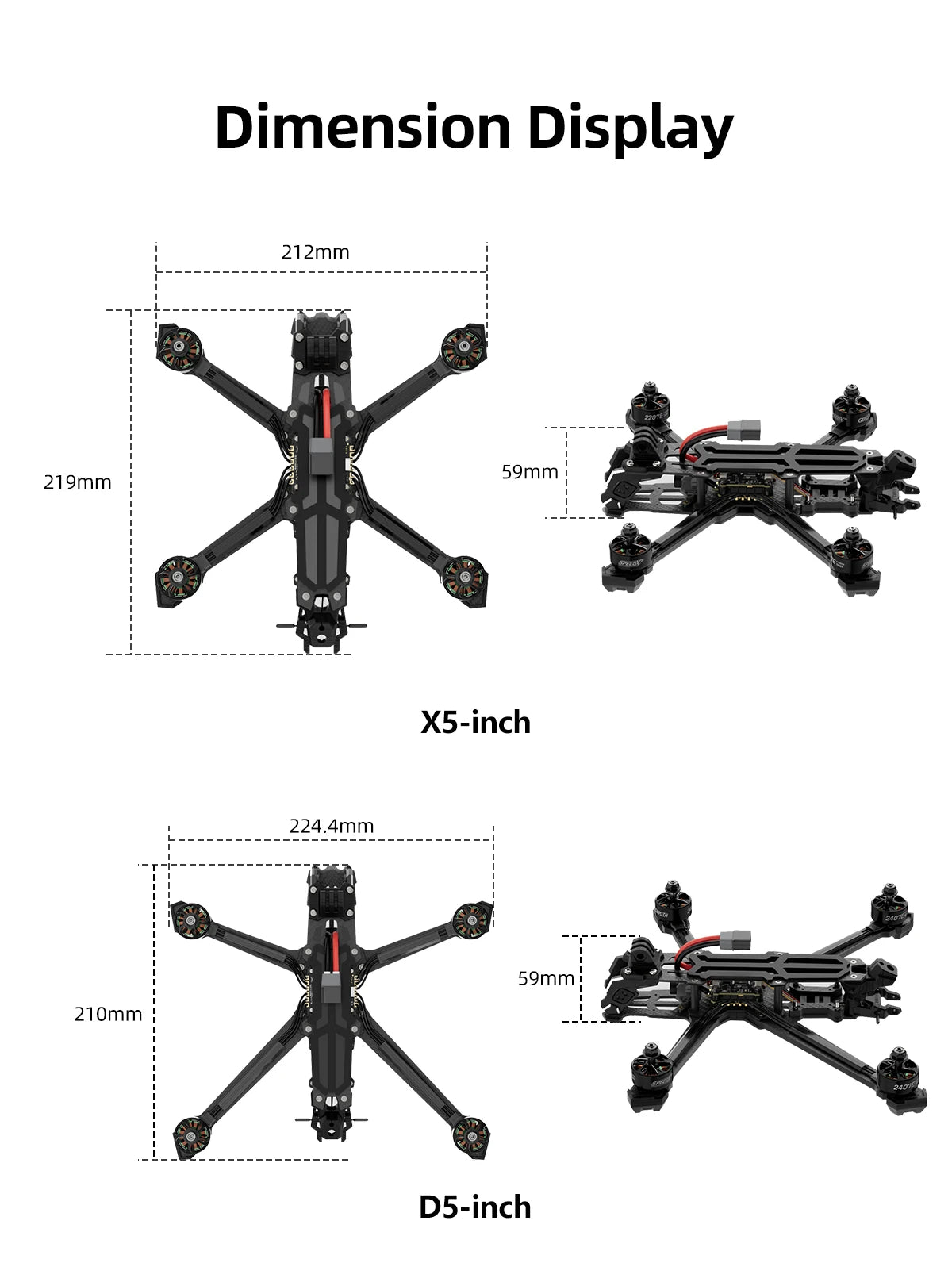

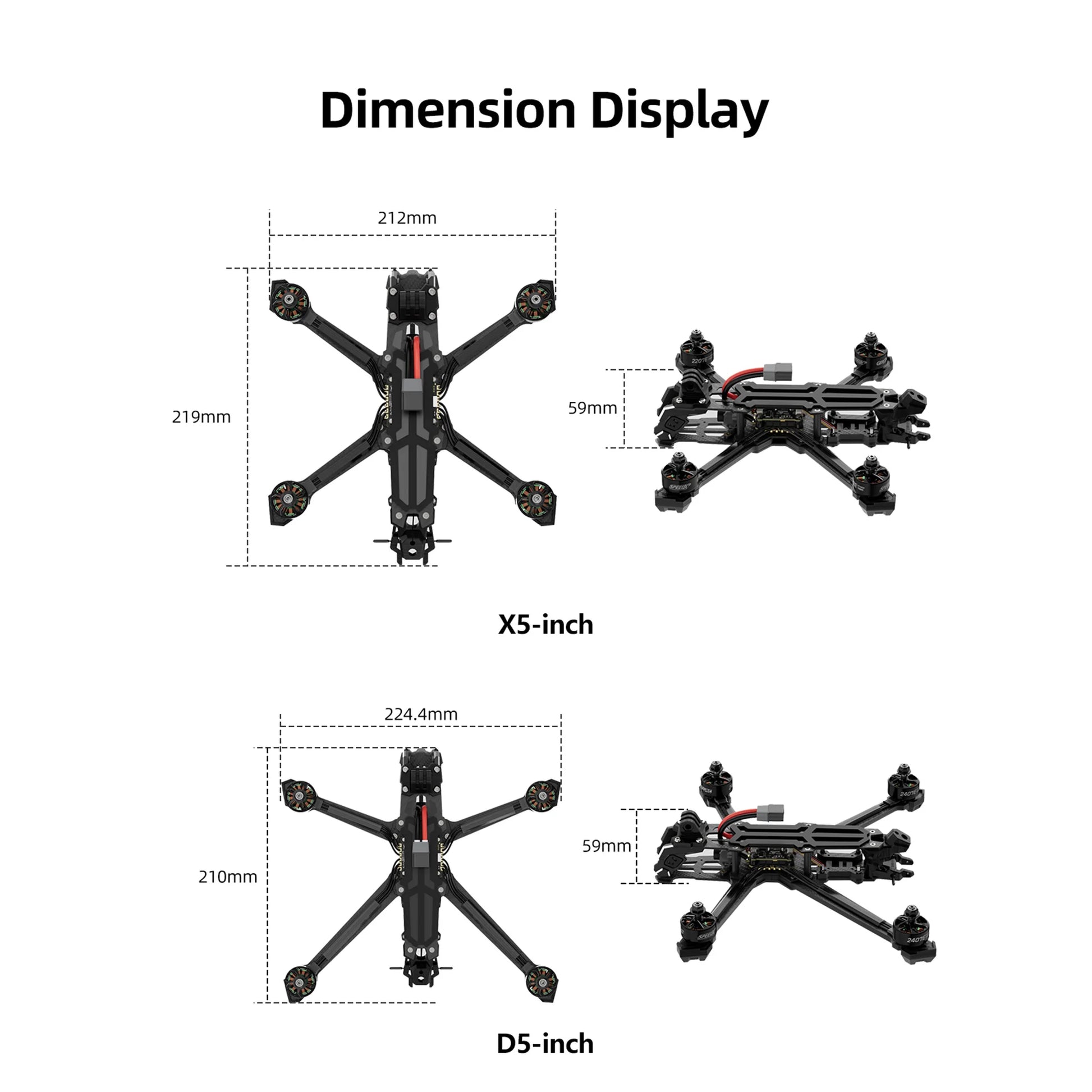

• Wheelbase: 238.43mm

•


• Top Plate: 2.0 mm

•


• Middle Plate: 2.0 mm

•


• Bottom Plate:2.5 mm

•


• Arm Thickness:5.0 mm

•


• FC: GEP-F722-HD v2

•


• MCU: STM32F722

•


• Gyro: ICM42688-P(SPI)

•


• Barometer: BMP280

•


• OSD: Betaflight OSD w/AT7456E

•


• ESC: TAKER H60_BLS 60A 4IN1 ESC

•


• VTX: /

•


• Camera: /

•


• Antenna: /

•

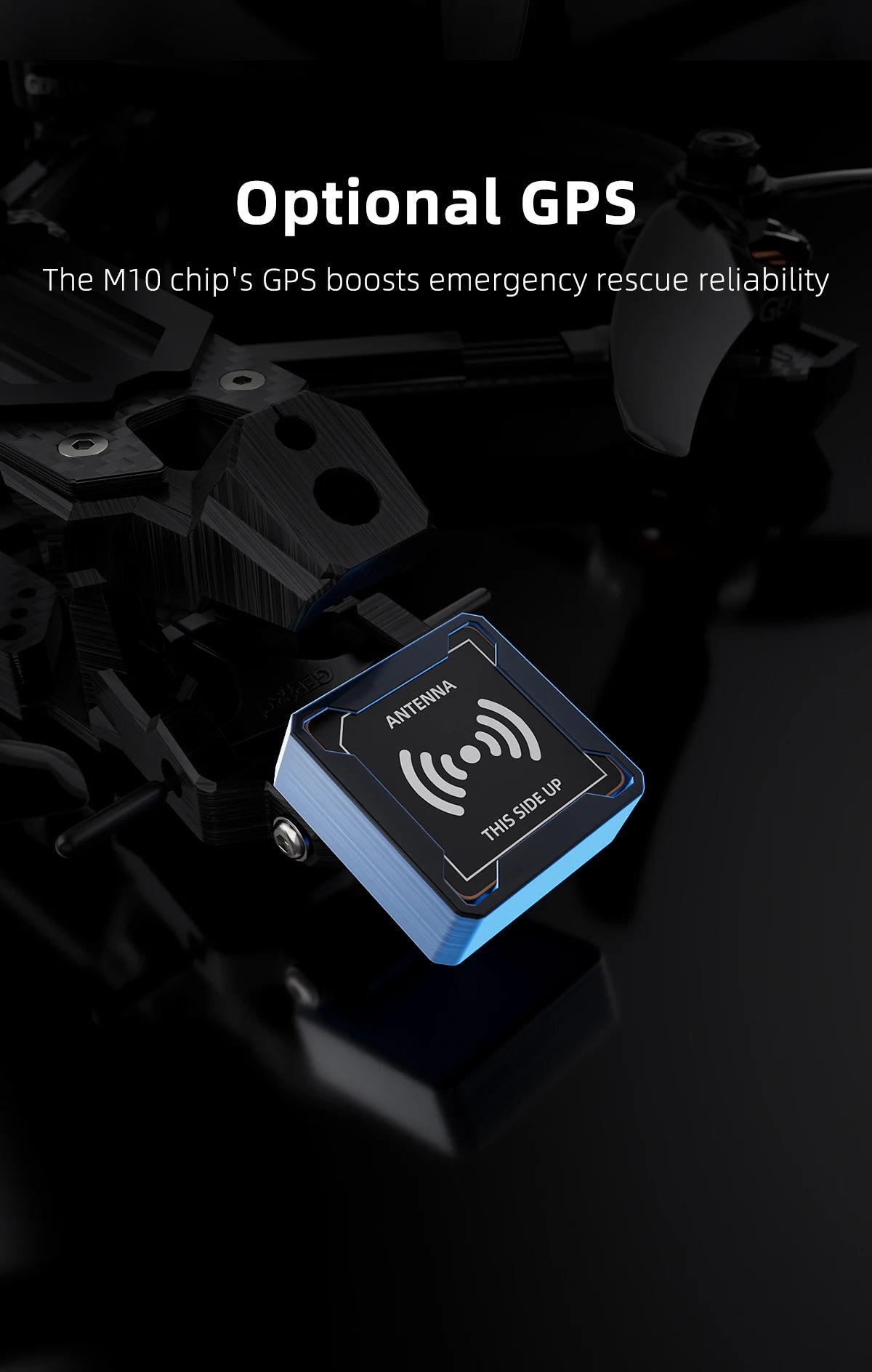

• Optional GPS:GEP-M10 GPS

•


• 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV

•


• 5-inch Propeller: GEMFAN 5136

•

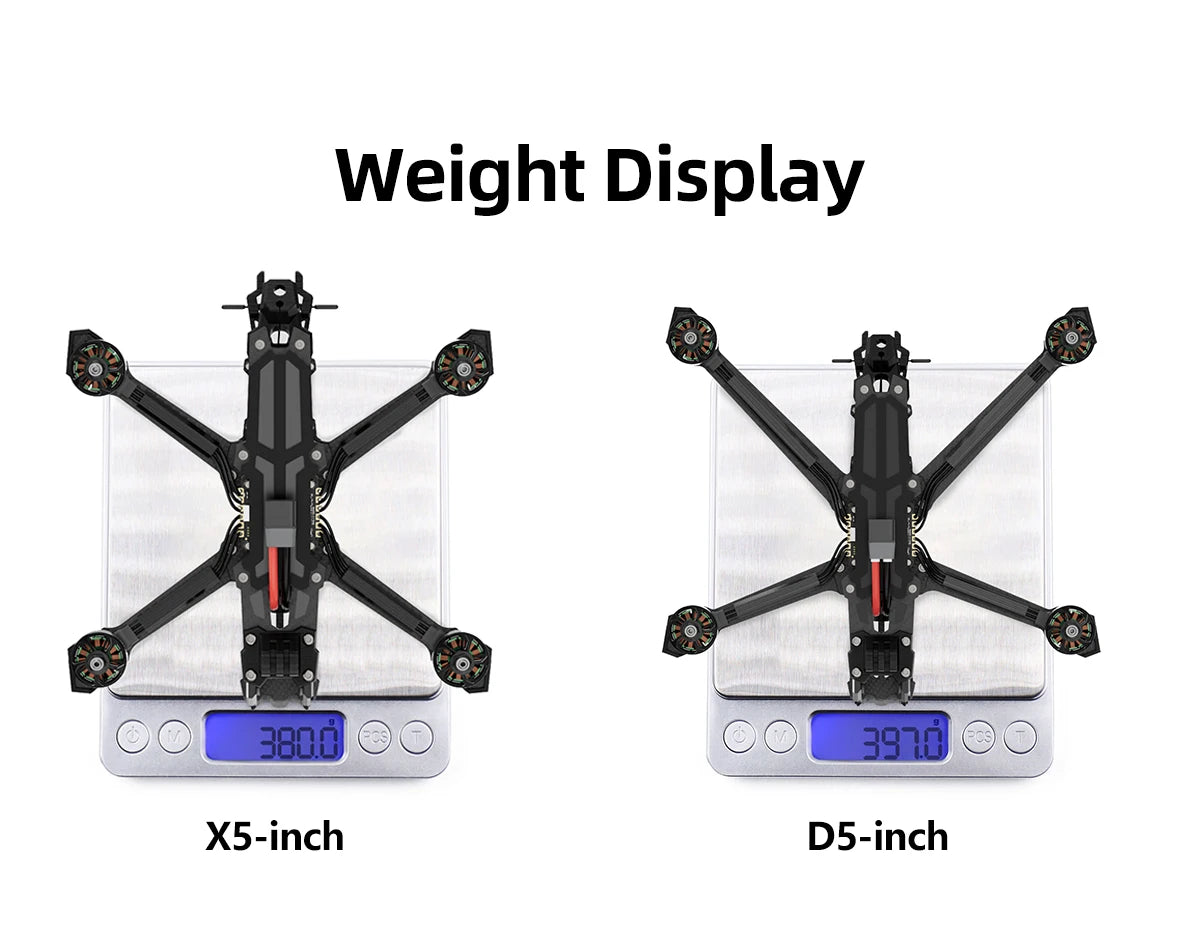

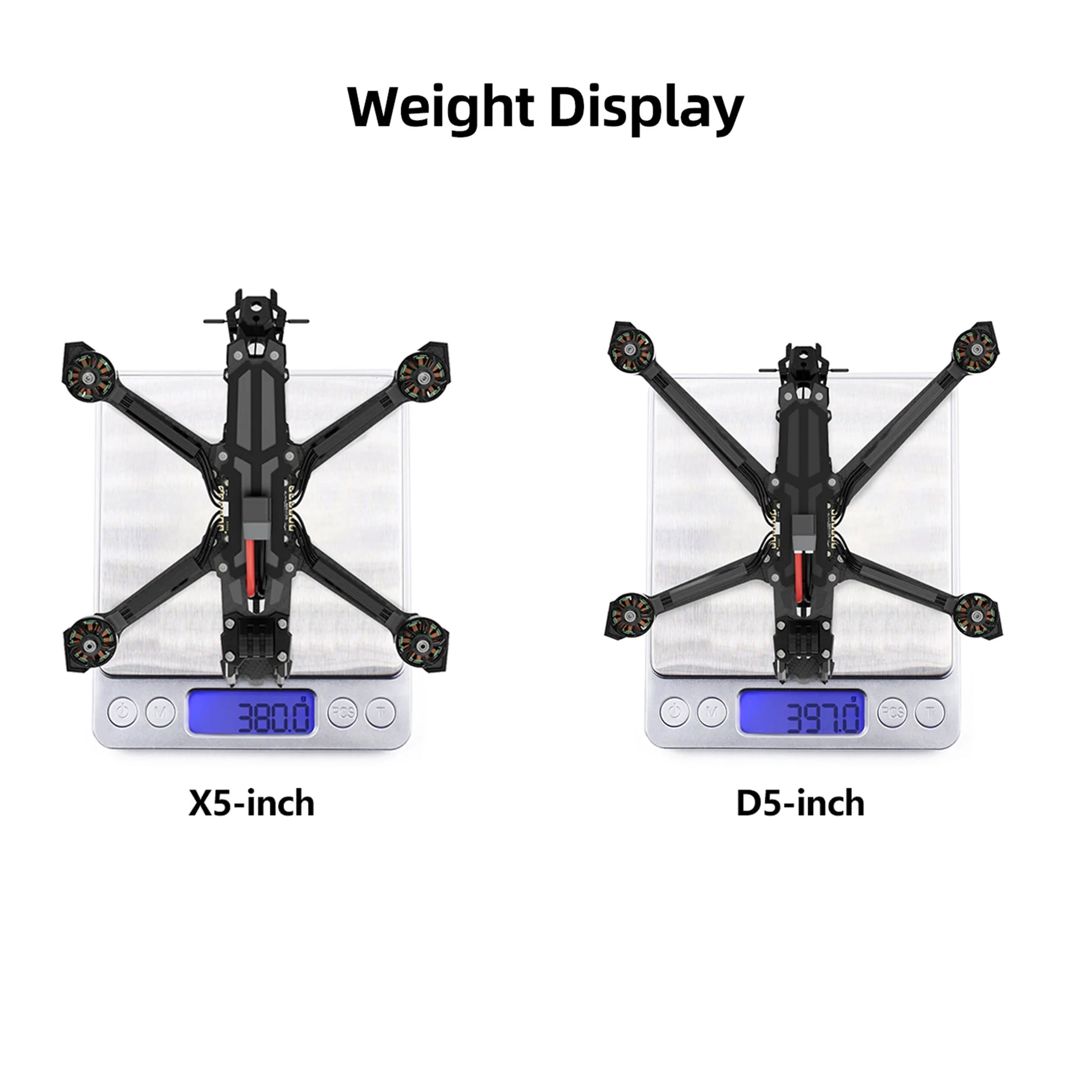

• Vapor-D5 WTFPV PNP Version Weight: 397g±5g

•

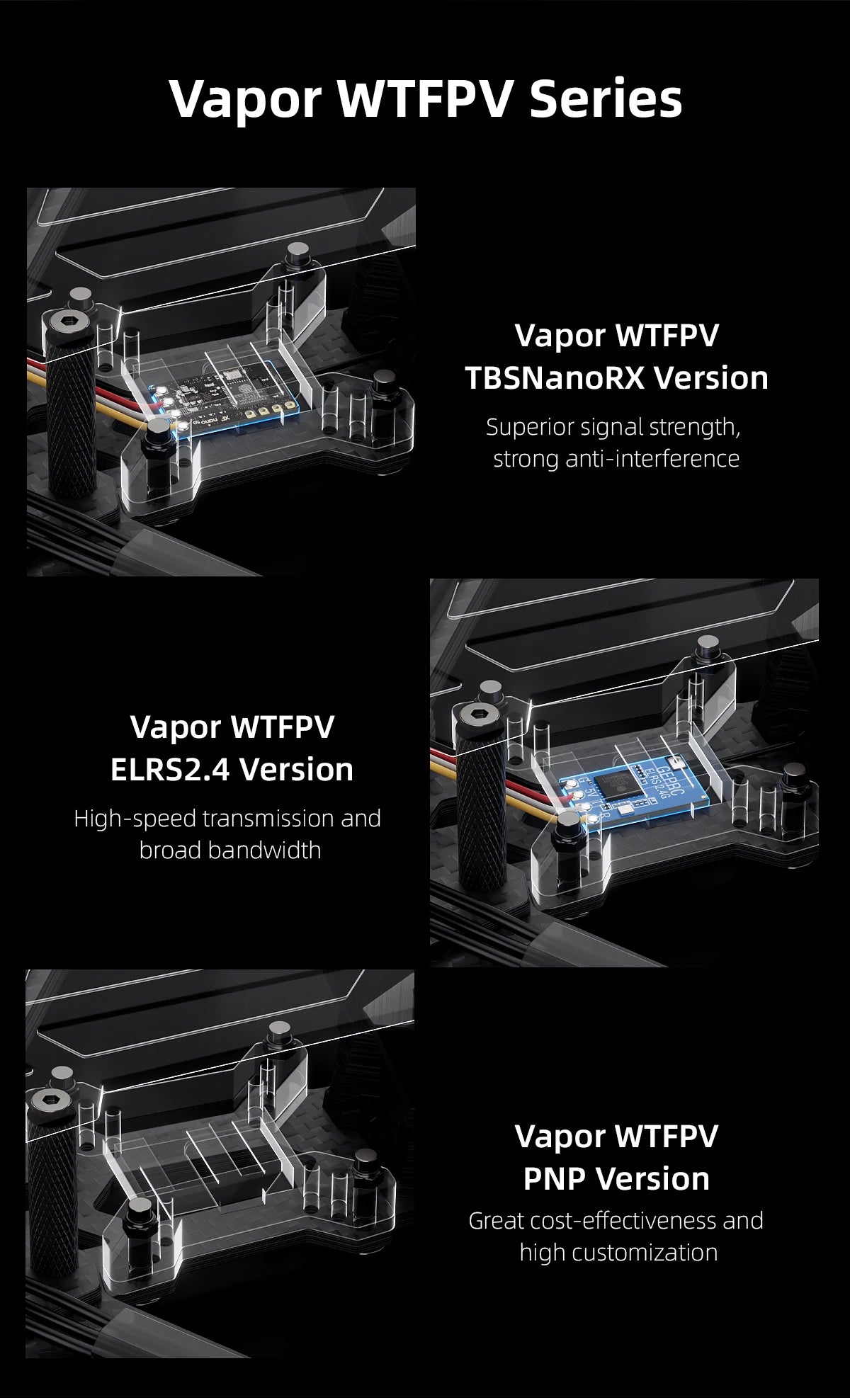

• Receiver: PNP/GEPRC ELRS24/TBS Nano RX

•


• Recommended Battery: 6S LiPo 1550mAh - 2200mAh

•


• Flight Time: 13-17 min

•


•


•

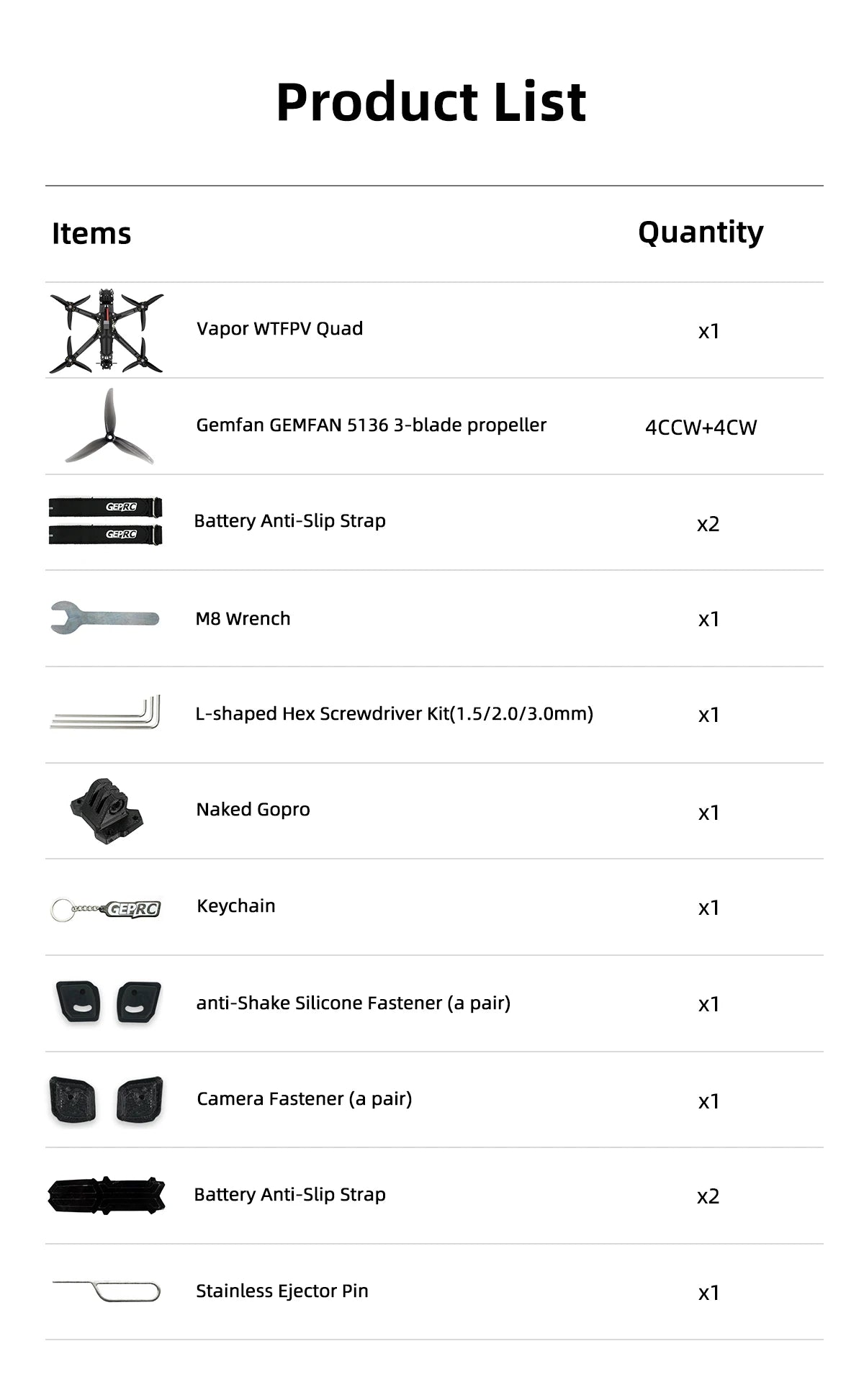

Includes
1 x Vapor-D5 WTFPV Quadcopter

2 x GEMFAN 5136

2 x Battery anti-slip pads

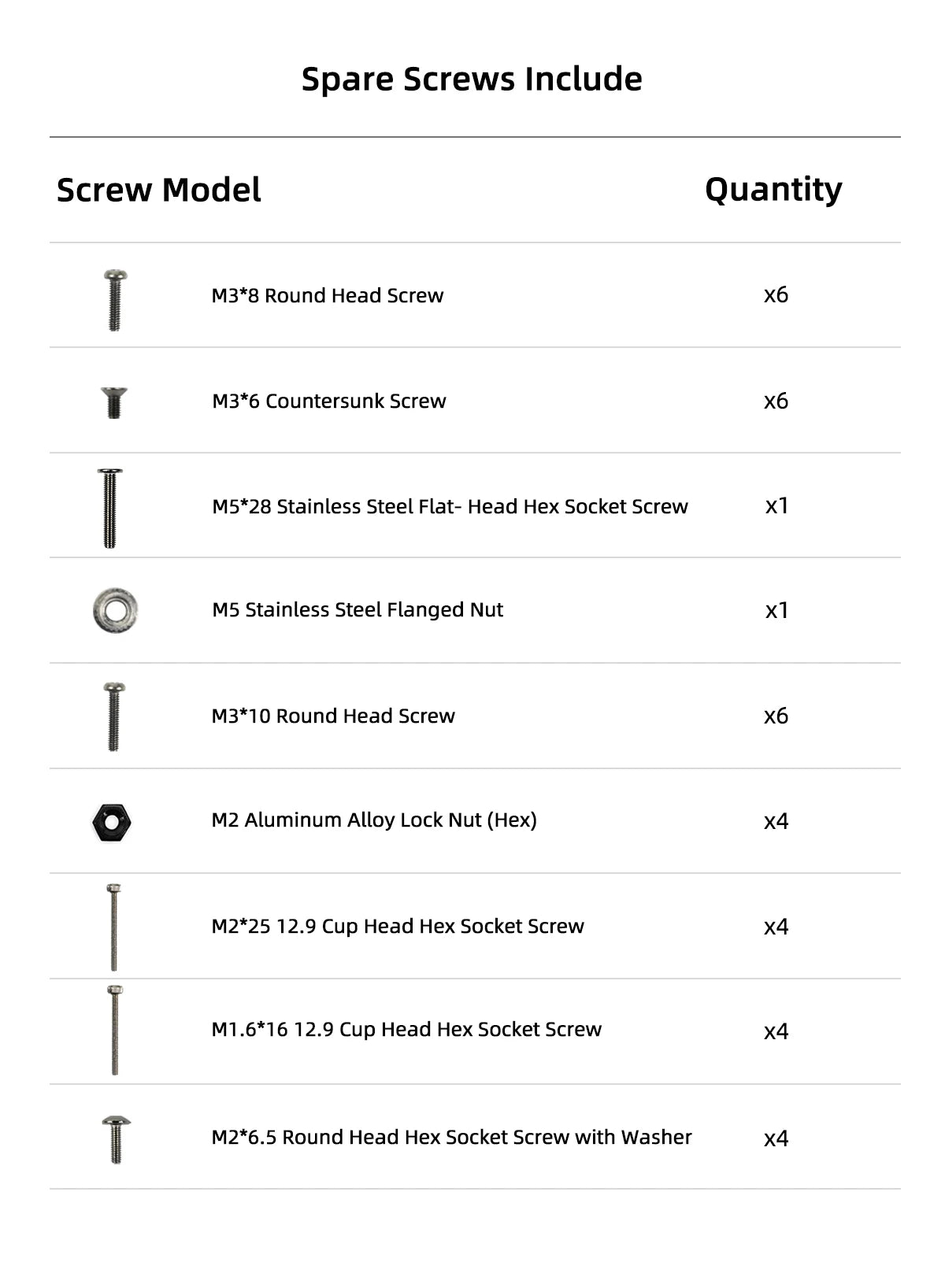

1 x Spare screw pack

2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2.0mm

1 x GoPro mount

Feature

1.


2. Equipped with the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance.

3.


4. Paired with GEPRC SPEEDX2 E series motors to deliver robust power for freestyle flying.

5.


6. The CNC aluminum alloy camera protection side plates enhance durability and aesthetics.

7.


8. The front lens protection design provides reassuring protection for flying.

9.


10. The increased width of the 5mm carbon fiber arms enhances frame aesthetics and strength.

11.


12. Available in 5-inch and 6-inch models, catering to various flying preferences.

13.



Specfication---Vapor-X5 WTFPV

•


• Model: Vapor-X5 WTFPV Quadcopter

•


• Frame: GEP-Vapor-X5 frame

•


• Wheelbase: 230 mm

•


• Top Plate: 2.0 mm

•


• Middle Plate: 2.0 mm

•


• Bottom Plate:2.5 mm

•


• Arm Thickness:5.0 mm

•


• FC: GEP-F722-HD v2

•


• MCU: STM32F722

•


• Gyro: ICM42688-P(SPI)

•


• Barometer: BMP280

•


• OSD: Betaflight OSD w/AT7456E

•


• ESC: TAKER H60_BLS 60A 4IN1 ESC

•


• VTX: /

•


• Camera: /

•


• Antenna: /

•


• Connector: XT60

•


• Optional GPS:GEP-M10 GPS

•


• 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV

•


• 5-inch Propeller: GEMFAN 5136

•


• Vapor-X5 Analog PNP Version Weight: 380g±5g

•


• Receiver: PNP/GEPRC ELRS24/TBS Nano RX

•


• Recommended Battery: 6S LiPo 1550mAh - 2200mAh

•


• Flight Time: 14-19 min

•



Includes
1 x Vapor-X5 WTFPV Quadcopter

2 x GEMFAN 5136

2 x Battery anti-slip pads

1 x Spare screw pack

2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2.0mm

1 x GoPro mount
